jQuery - Tutorial overview jqGrid Plugin

This article summarize and give you an overview of the functions and how to use this component. JQuery Grid Plugin This is a fairly common used to display and manage the data in tabular form. Its function very much, I only introduce the main features and how to use it client side script.



Note: This article does not aim to introduce you to using jqGrid from AZ that can only be seen as a brief introduction or quick reference. To find out. So if you have not worked with jqGrid, read all instructions in the link below before you begin:

My First Grid: http://www.trirand.com/jqgridwiki/doku.php?id=wiki:first_grid

to introduce

- An Ajax-enabled JavaScript control.
- A plugin for jQuery Library.
- Provides solutions for representing and tabular data on the web manipulat.
- Can be integrated with any server-side technology, Including PHP, ASP, Java Servlets, JSP, ColdFusion , and Perl.

jqGrid can handle many different types of data sources, such as:
- xml, xmlstring
- json, jsonp, jsonstring
- array
- function (...)

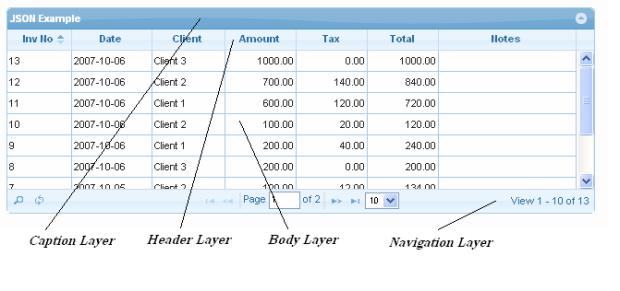

The upper part of jqGrid interface:

jQuery - Tutorial overview jqGrid Plugin
(Source: http://www.trirand.com/jqgridwiki )

The basic functions

- CSS based themes (jqGrid is compatible with UI theming).
- Paging.
- Resizable Columns.
- Sorting & various data types.
- Auto loading data khi scrolling.
- Cross browser. Supports for IE 6.0+, Firefox 2.0+, Safari 3.0+, Opera 9.2+ and Google Chrome.
- Multilanguage support (more than 20 languages).
- Support for XML, JSON and arrays as data sources.
- SubGrids.

The global configuration

The default configuration is saved in jQuery.jgrid.defaults jqGrid, so you can change it to affect the entire grid is created. Here I use the methods jQuery.extend () to execute the config merge two objects.

$ .extend (JQuery.jgrid.defaults, {
        jsonReader: {
              id: "0" ,
              repeatitems: false
        },
        MTYPE: 'POST' ,
        sortname: '' ,
        toppager: false ,
        rownum: 50,
        viewrecords: true ,
        loadtext: "Loading ..." ,
        height: "550px" ,
        rowList: [50,100,500,1000],
        gridComplete: function (grid) {
             // Do something, như resizing grid ...
        }
});

Get the JSON data types

For each type of data (xml, json, local), you need to have a corresponding object to help reader understand the structure jqGrid of data. For example with JSON data type, a predefined jqGrid jsonReader as follows:

jQuery ( "#gridid" ) .jqGrid ({
...
   jsonReader: {
     root: "rows" ,              // points to the array data chứa
     page: "page" ,              // current page
     total: "total" ,            // total pages
     records: "records" ,        // total records
     repeatitems: true ,         // the data in the row is repeatable
     cell: "cell" ,              // name of array data for the row chứa.
     id: "id" ,                  // descibes the unique id for the row
     userdata: "userdata" ,      // custom data from the request trả
     ...
   },
...
});

Objects on the reader can analyze the data returned from the server JSON follows:

{
  "Total" : "xxx" ,
  "Page" : "yyy" ,
  "Records" : "zzz" ,
  "Rows" : [
    { "id" : "1" , "cell" : [ "cell11" , "cell12" , "cell13" ]},
    { "id" : "2" , "cell" : [ "cell21" , "cell22" , "cell23" ]},
      ...
  ]
}

To explain:

Tag Description
total total pages for the query
page current page of the query
records total number of records for the query
rows mảng chứa the actual data
id the unique id of the row
cell mảng chứa the data for a row

Creating Grid

The code illustrates the creation of an id jqGrid on a table with the list and div # pager as navigator to contain ingredients paging buttons and manipulating data.

...
< table id = "list" > < tr > < td /> </ tr > </ table >
< div id = "pager" > </ div >
...
< script type = 'text / javascript' >
    $ ("# List"). JqGrid ({
    jsonReader: {
        id: "0",
        repeatitems: false
    },
    url: 'example.php'
    datatype: 'json',
    MTYPE: 'GET',
    colNames: ['id', 'Name', 'RegionID', 'Region', 'Description', 'DisplayOrder', 'Enabled'],
    colModel: [
          {Name: 'CountryID' index 'CountryID', width: 50, align: 'center', key: true},
          {Name: 'COUNTRYNAME' index 'COUNTRYNAME',},
          {Name: 'RegionID' index 'RegionID', hidden: true},
          {Name: 'regionname' index 'regionname'},
          {Name: 'description' Index: 'description'},
          {Name: 'DisplayOrder' index 'DisplayOrder' align 'center'},
          {Name: 'IsEnabled' index 'IsEnabled', width: 80, align: 'center', formatter: "checkbox"}
    ],
    pager: '#pager'
    viewrecords: true,
    caption: "Countries Table"
 });
 </ script >

Navigating

To activate the built-in button (add, edit, del, view, search) on the navigator bar jqGrid, should call the method navGrid () with the following options when creating grid:

// Config the built-in buttons for the pager
$ Grid.jqGrid ( "navGrid ' , '# pager1' ,
    {
    search: false , view: true , edit: true , add: true , del: true ,
    },
    // Edit options
    options,
    // Add options
    options,
    // Del_options, search_options, view_options
);

We can also add another button on using navButtonAdd ():

// Add a custom button to navigator
$ Grid.jqGrid ( "navButtonAdd" , "# pager1" , {
    caption: "Click Me" ,
    buttonicon: "none" ,
    onClickButton: function () {
        alert ( "Hello! I'm a custom button." );
    },
    position: "last"
});

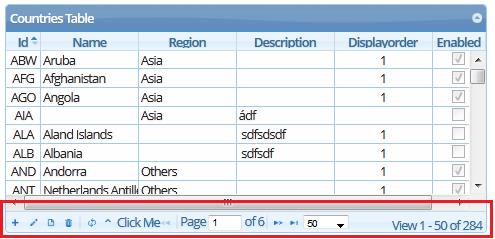

Result:

jQuery - Tutorial overview jqGrid Plugin

Searching

Default jqGrid provided with Single Search function is activated when the button Search for the navigator. We can add the option {multipleSearch: true} for parameter search_options (see above) to jqGrid switched Advanced Search function. This function lets you search for more complex conditions.

To search based on the toolbar, we call the method filterToolbar ():

$ Grid.jqGrid ( 'filterToolbar' , options);

Inline Interface and Advanced Searching:

jQuery - Tutorial overview jqGrid Plugin

Editing

jqGrid offers three ways to edit data as Cell, Inline and Form. The fix in the form was integrated into the Edit button of the navigator.
First, when creating grid, we define the columns are allowed to correct the data in the two attributes colModel editable and edittype:

colModel: [
              {Name: 'CountryID' , index: 'CountryID' , align: 'center' , key: true },
              {Name: 'COUNTRYNAME' , index: 'COUNTRYNAME' , width: 150, editable: true , edittype: 'text' },
              {Name: 'RegionID' , index: 'RegionID' , hidden: true , editable: true , edittype: 'text' },
              {Name: 'regionname' , index: 'regionname' , width: 150, editable: true , edittype: 'text' },
              {Name: 'description' , index: 'description' , width: 150, editable: true , edittype: 'text' },
              {Name: 'DisplayOrder' , index: 'DisplayOrder' , align: 'center' , editable: true , edittype: 'text' },
              {Name: 'IsEnabled' , index: 'IsEnabled' , width: 80, align: 'center' , formatter: "checkbox" , editable: true , edittype: 'checkbox' }
        ]

To enable Cell Editing (edit a cell in the data table), we add two options when creating grid cellEdit and cellurl:

// Creating grid cell editing with support
$ Grid.jqGrid ({
    // ...
    cellEdit: true ,
    cellurl: '/ url / to / handling / the / changed / cell / value'
});

For Inline Editing features (edit raw data line), we will process the event and invokes onSelectRow editRow () where:

// Handle the event onSelectRow khi tạo grid
$ Grid.jqGrid ({
    // ...
    onSelectRow: function (id) {
    if (id id &&! == lastSel) {
        $ Grid.restoreRow (lastSel); // you can call saveRow () thay
        lastSel = id;
    }
    $ Grid.editRow (id, true );
    }});

Form Editing Interface:

jQuery - Tutorial overview jqGrid Plugin

Grouping

Grouping the data:
- The data in the table will be collected into sections based on the columns specified. When creating the grid, we offer the following options to collect data and dimensional regionname column is sorted in ascending (asc). Note groupField and groupOrder the array so you can pass on many different columns.

$ Grid.jqGrid ({
    // ...
    grouping: true ,
    groupingView: {
    groupField: [ 'regionname' ],
    groupOrder: [ 'asc' ]
}});

In addition to data clustering, jqGrid can gather together the column header (Header Grouping) by methods setGroupHeaders ():

$ Grid.jqGrid ( 'setGroupHeaders' , {
    useColSpanStyle: true ,
    groupHeaders: [
            {StartColumnName: 'CountryID' , numberOfColumns: 2,
                titleText: '<em> Info </ em>' },
            {StartColumnName: 'description' , numberOfColumns: 2,
                            titleText: 'Config' }
    ]
});

Result:

jQuery - Tutorial overview jqGrid Plugin

Formatter

To display format for each data type, jqGrid provide Predefined Formatter as number, date, link, checkbox, ... Also, we can create the custom formatter to format the data for the particular column.
For I create a custom formatter instance with myformatter name and assign attributes to the corresponding column formatter colModel array.

$ Grid.jqGrid ({
    // ...
    colModel: [
          {Name: 'COUNTRYNAME' , index: 'COUNTRYNAME' , formatter: myformatter},
        // ...
    ]
});

myfomatter essentially a function with three parameters in particular:

function myformatter (cellvalue, options, rowObject)
{
    return rowObject.countryid +
        "- <Span class =" highlight ">" + cellvalue + "</ span>" ;
}

- Cellvalue - the value to be formatted
- options - an object containing element sau
options: {RowID: Rid, colModel: cm}
- rowObject - represented a row in the format data from datatype định option.
Result:

jQuery - Tutorial overview jqGrid Plugin

How to refresh the data or view of grid

pqGrid tries to refresh view on its own prior to version 2.0.2 in most cases when dataModel properties are changed. This behaviour is sometimes undesirable e.g. consecutive calls to API changing dataModel properties may lead to undesirable refreshes and reloads of data which is not good for performance. This has changed starting from 2.0.2 whereby the data or view of grid can be refreshed in a more controlled manner. pqGrid can be refreshed in various ways depending upon what or which part of the grid needs to be refreshed. Please see the below comparison table to know which method to use:

refresh refreshView refreshDataAndView
Refresh Column Header Yes Yes Yes
Refresh view for updated rows Yes Yes Yes
Refresh view for added rows No Yes Yes
Refresh view for removed rows No Yes Yes
Reload data from server (location = 'remote') No No Yes
Reload data from dataModel.data (location = 'local') - Yes Yes
Refresh local paging No Yes Yes
Refresh local sorting No No Yes
Refresh local filtering No No Yes
Refresh row grouping No Yes Yes
Refresh cell merging No Yes Yes

Refer
