How to use Mitsubishi 2-way air conditioner remote control

Not everyone knows how to use Mitsubishi air conditioners most effectively and save energy. Learn the meaning of the buttons and features of the Mitsubishi 2-way air conditioner remote control in the article below to know how to use it.

Table of Contents

• Meaning of Mitsubishi air conditioner control buttons
• How to use Mitsubishi air conditioner remote control
• Air conditioner timer
• How to set time on Mitsubishi remote control

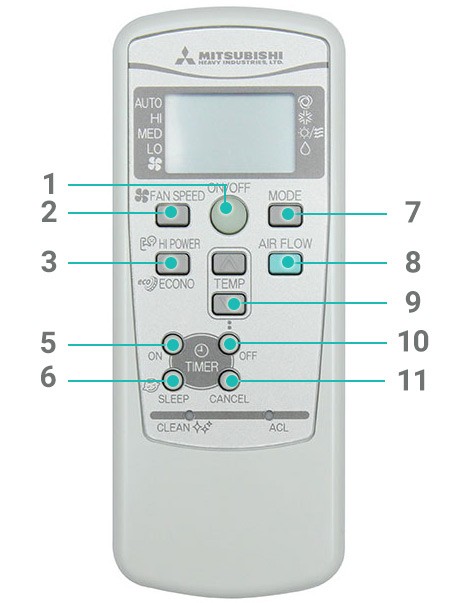

Meaning of Mitsubishi air conditioner control buttons

1. ON/OFF: Button to turn the air conditioner on or off.

2. FAN SPEED: Fan speed adjustment button.

3. HI POWER/ECONO: Switch button between boost mode and power saving mode.

5. ON: Button to set the time to automatically turn on the air conditioner.

6. SLEEP: Switch to sleep mode.

7. MODE: Select the air conditioner's operating mode (Auto/Cooling/Dehumidifying/Fan only).

8. AIR FLOW: Change the direction of the cooling wind.

9. TEMP: Adjust the air conditioner temperature.

10. OFF: Button to set the time to automatically turn off the air conditioner.

11. CANCEL: Button to cancel the operation of the on timer, off timer and sleep mode.

How to use Mitsubishi air conditioner remote control

ON/OFF button

Press the ON/OFF button to turn on the air conditioner and press the ON/OFF button again to turn off the air conditioner.

MODE button

To select the air conditioner mode, there is cooling mode, fan mode, Dry mode, with Mitsubishi 2-way air conditioner there will be an additional heating mode for winter. The modes are displayed through the icon on the left side of the screen.

FAN SPEED button

Press this button to adjust the fan speed you want. There are 4 wind levels to choose from, you can press continuously until the screen displays the desired speed (the number of fan blades is the wind level).

TEMP button

Adjust the temperature up or down in the direction of the arrow.

HI POWER/ECONO button

To switch between HI POWER and ECONO power saving modes, press the “HI POWER/ECONO” button continuously. Each time you press the button, the mode will switch in the order Off - HI POWER - ECONO - Off.

AIR FLOW button

Press the button repeatedly until the appropriate cooling direction is selected.

ON/OFF/CANCEL button

To set the time to turn the machine on or off automatically, first press the “ON” button if you want to set the on time or press the “OFF” button if you want to set the off time. Then, use the two buttons to increase or decrease the temperature to adjust the time you want to set. If you want to cancel the timer setting, press the “CANCEL” button on the remote control.

SLEEP button

When you press the NIGHT button (in some machines it is SLEEP), the machine will activate sleep mode. You can choose the operating time to vary from 1 to 10 hours.

When this button is turned on in summer cooling mode, the room temperature increases by 1 degree Celsius every hour and then remains the same.

For example: Set 27 degrees C, press the button, after 1 hour the temperature is 28 degrees C and after 2 hours it increases to 29 degrees C and stays at 29 degrees C until the machine stops.

When this button is turned on in winter heating mode, the temperature will gradually decrease, after 30 minutes it will decrease by 1 degree C and after 2 hours it will be 4 degrees C, then it will remain at the set value minus 4 degrees C.

For example, if set at 25 degrees C, after 30 minutes it will be 24 degrees C, after 1 hour it will be 23 degrees C, after 2 hours it will be 21 degrees C and will stay at 21 degrees C until the machine stops.

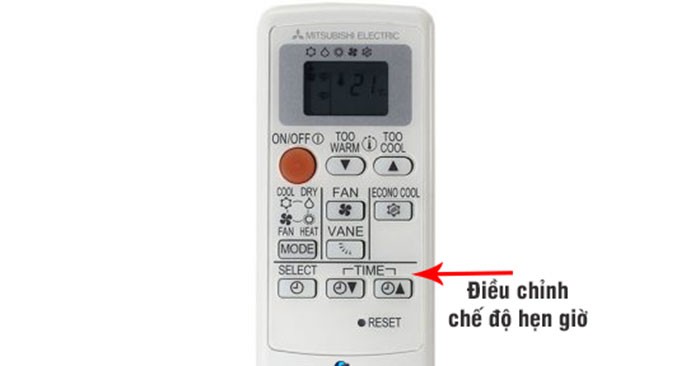

Air conditioner timer

The timer function on the air conditioner helps us control the time to turn the air conditioner on and off as required.

Shutdown timer:

If you want the air conditioner to turn off in 3 hours, do the following:

1. Press the ON TIMER button, the – o light will flash, the current time level displayed on the control screen is 0:00

2. Press the ▲ and ▼ buttons to bring the number to the correct number 3

3. Press the ON TIMER button again, the screen shows -o and the TIMER light on the indoor unit lights up. The time will start counting down until it reaches 0:00, then the air conditioner will automatically turn off.

To exit timer mode simply press the CANCEL button.

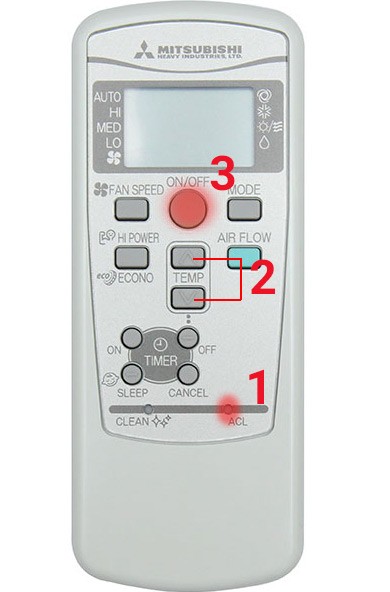

How to set time on Mitsubishi remote control

To reset the time displayed on the remote control, remove the remote control battery and reinsert it, the remote control will automatically switch to time setting mode.

• Use the small pointed tip to press the ACL button.
• Press the up and down (TEMP) keys to adjust to the current time.
• Press the ON/OFF button to complete.
