6 Ways to Fix SSD Not Showing Up in Windows

SSDs have huge benefits over traditional magnetic hard drives, which is why many people are upgrading to this superior storage solution.

• Difference between SSD and HDD hard drive

A common problem with SSDs is that they are not recognized by the Windows operating system. If this is the case, your SSD may not show up on This PC, File Explorer , and Disk Management , despite being properly connected to your computer.

This issue can be especially troublesome when setting up an SSD. Read the following article to learn how to fix SSD detection issues in Windows.

1. Make sure the SSD is installed properly

This may sound basic, but it's possible that your SSD isn't installed properly, causing your computer to not detect the SSD. The fix may vary depending on the type of SSD you have installed.

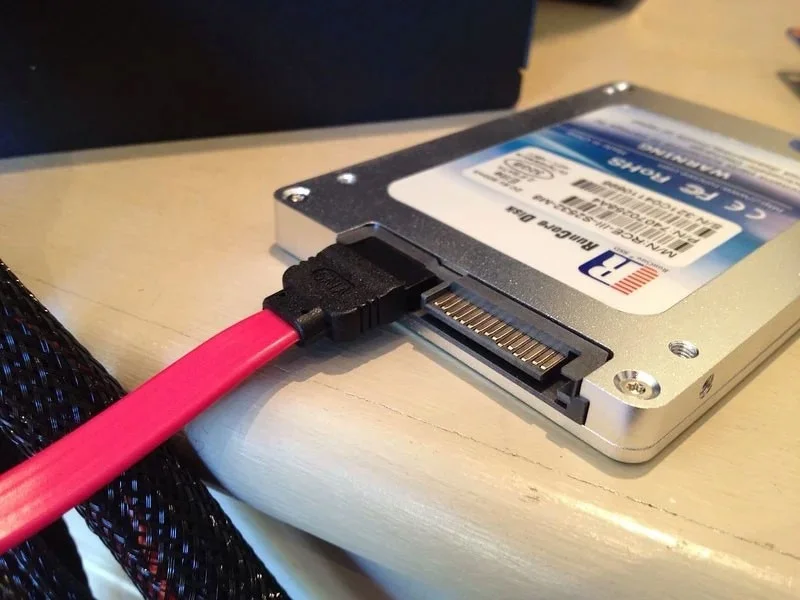

• For SATA SSDs, open your PC or laptop case and check that the power and SATA cables are fully plugged into the drive. Try using a replacement cable inside your computer or motherboard case.

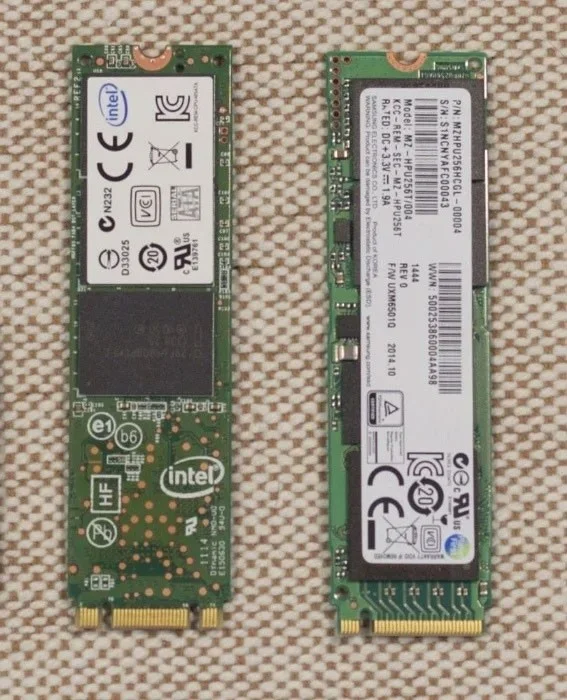

• For M.2 SSDs, make sure you install them in the appropriate slot. For example, M.2 NVMe (single-bay) SSDs, even if they can fit into M.2 SATA (dual-bay) slots, will not work in this configuration. You will need to verify what type of M.2 SSD you have, then install it in the appropriate slot on your motherboard. You can also try installing the SSD in a different M.2 slot if you suspect that the slot is faulty.

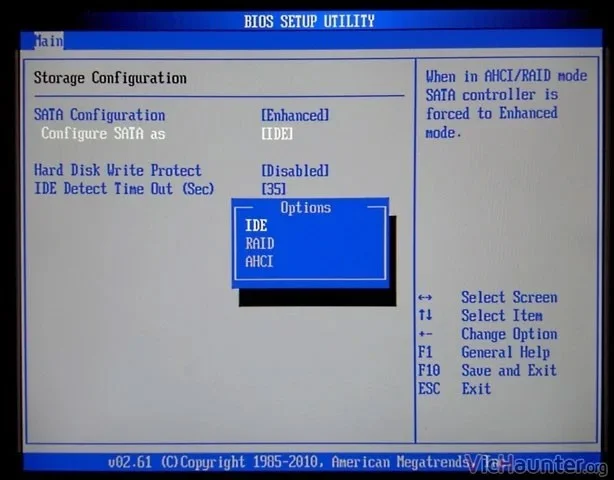

2. Check SSD settings in BIOS

It is also possible that you have installed the SSD correctly but your PC is still not detecting it. Enter the BIOS using the specific key that is displayed when your PC starts up, then check that the BIOS settings are configured correctly to detect your new SSD.

First, check to see if your SSD is detected by your BIOS. You’ll need to navigate to the storage or configuration section of your BIOS, which will vary from motherboard manufacturer to motherboard manufacturer. Confirm that your SSD is listed in the drive list.

If it is not listed, then the drive is either faulty or you need to change some additional settings. Navigate back to the storage section in the BIOS and look for a setting related to SATA configuration. If you are running a SATA SSD, you may need to try different options in the SATA configuration: AHCI mode, IDE, or Compatibility. Save your changes and restart your computer. Check to see if the SSD shows up in Windows.

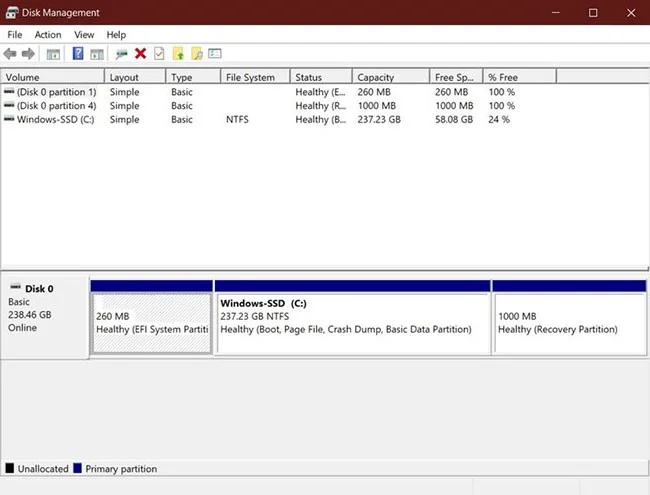

3. Initialize SSD drive

When you get a new SSD, you need to initialize it to use it in Windows 10. An uninitialized SSD won't show up in File Explorer or the Disk Management utility.

If you haven't initialized your SSD yet, you can follow a few steps:

Step 1: Search for Disk Management in the Start menu search bar, right-click on the best match and select Run as administrator .

B2: Right-click on the undetected SSD and select Initialize Disk.

B3: In the Initialize Disk dialog box , select the SSD you want to initialize and choose the partition type.

B4: Click OK to start the drive initialization process.

B5: After completing step 4, go back to Disk Management , right-click on the SSD volume and select New Simple Volume .

B6: Follow the on-screen instructions to assign the SSD volume and drive letter.

After initializing the SSD, you should restart your PC so that the changes can take effect properly. After restarting, Windows 10 will detect the SSD and you can access it through File Explorer.

4. Specify or change drive letter

A common reason why Windows 10 doesn't recognize an SSD is because the drive letter is conflicting or missing. You can quickly resolve this issue by changing or assigning a new drive letter to the SSD in the Disk Management utility.

To change the drive letter of the SSD:

Step 1: Search for Disk Management in the Start menu search bar, right-click on the most suitable option and select Run as administrator .

B2: Right-click on the SSD drive and select Change Drive Letter and Paths .

B3: Click Add if the drive letter does not exist or Change to modify the existing drive letter.

B4: Select the new drive letter from the drop-down menu and click OK for the changes to take place.

After following the steps above, you can restart your PC and Windows will recognize the SSD. You can then access the SSD through File Explorer.

5. Update the memory controller driver

Before moving on to more in-depth fixes, you need to make sure that your memory controller drivers are up to date. Outdated drivers can cause the device to not function properly and lead to why Windows is not detecting the SSD.

To update the memory device controller driver:

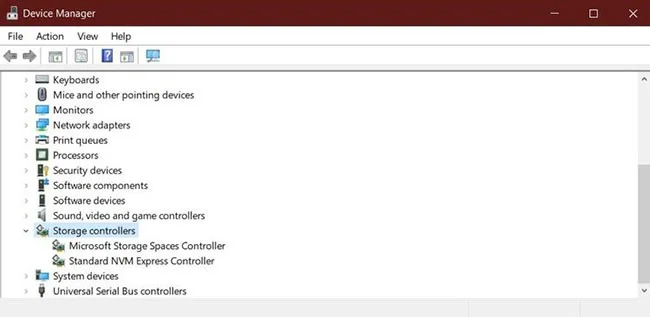

Step 1: Launch Device Manager from the Start menu.

B2: Search for Storage controllers and expand the group.

B3: Right-click on the memory device controller and select Update driver.

Step 4: Select Search automatically for updated driver software .

Windows will automatically install any available updates; you can then restart your PC and open File Explorer or the Disk Management tool to check if Windows 10 now detects the SSD.

• 8 effective ways to check hard drive to help check hard drive health periodically

6. Format SSD drive

As a last resort, formatting the SSD will resolve any underlying conflicts. The only downside to this solution is that you will lose all data on the drive if the drive you just installed is not a new one.

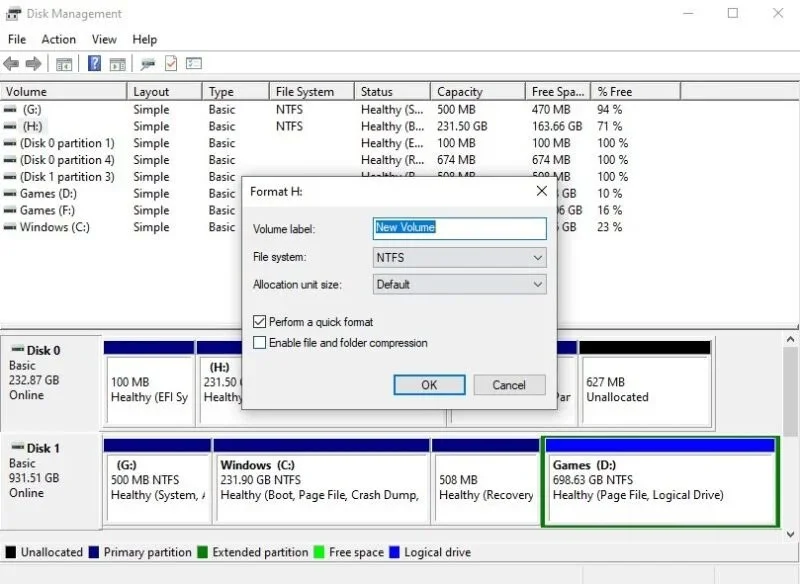

Once you've backed up any data you want to keep, go back to Disk Management, right-click on the SSD, and click Format . Give the drive a name and choose a file system (NTFS works fine for most people). Select the default allocation size, check the box next to Quick format , and click OK to start the process.

Once the format is complete, your drive should be viewable in File Explorer. If not, restart your computer and check again.

Good luck in fixing the error!
